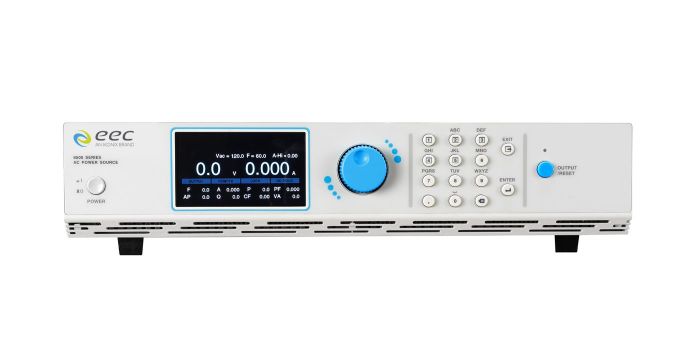

8505

500VA, output voltage up to 310VAC, output frequency ranging from 5-1200Hz, CE listed

The 8505 provides 1Ø AC power and is manufactured for simulating common grid faults, voltage dips, and other power abnormalities. Standard mode adds the ability to remotely control and program the power source. Advanced mode adds the benefits of a sweep of voltage, frequencies, transients, and DC bias over the course of a single sequence or several different tests.

Safety Features: Safety Interlock, PLC Remote
Warranty: 5 Year Warranty
Dimensions (W x H x D): 16.92" x 3.46" x 19.96" (430 x 88 x 500 mm)
Weight: 33lbs (15KG)

$1,999.00

Functional Mode Options (Default is MANUAL Mode)

Communication Options (Comes standard with USB/ENET ports)

Calibration Type

- +

$1,999.00

Request a Quote

NOTE: to communicate with the source remotely you must purchase Standard or Advanced Mode. In MANAUL mode the source can only be used via the front panel or PLC.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

High Power density with a reduced overall footprint

14 pre-configured waveforms - simulate nearly any abnormal condition on your DUT

Output voltage up-to 310VAC and output frequency from 5 – 1200 Hz

Advanced Mode - easily simulate voltage surges, voltage drops, voltage pulses, DC bias, and frequency sweeps

Models	8505	8512	8520	8530	8540	8560
Power Output	500 VA	1250 VA	2000 VA	3000 VA	4000 VA	6000 VA
Voltage Output	0 – 310 VAC	0 – 310 VAC	0 – 310 VAC	0 – 310 VAC	0 – 310 VAC	0 – 310 VAC
Max Current	5A @100V / 2.5A @ 200V	12.5A @ 100V / 6.25A @ 200V	20A @ 100V / 10A @ 200V	30A @ 100V / 15A @ 200V	40A @ 100V / 20A @ 200V	60A @ 100V / 30A @ 200V
Frequency	5 – 1200 Hz	5 – 1200 Hz	5 – 1200 Hz	5 – 1200 Hz	5 – 1200 Hz	5 – 1200 Hz
Phase	1Ø2W	1Ø2W	1Ø2W	1Ø2W	1Ø2W	1Ø2W

Interlock Disable Key (1505) X1

USB Cable X1

Shorting bar X1

Input / Output Terminal Protection Box X1

Power Cord (125Vac/10A) X1

Rack Mount (2U) X2

Handle for Rack (2U) X2

Input	Manual Mode	Standard Mode	Advanced Mode
Manual Operation	•	•	•
PC Interface (USB/LAN standard, optional GPIB)		•	•
PowerTRAC Compatibility		•	•
Voltage, Frequency, Transient, and DC Bias Sweeps			•
