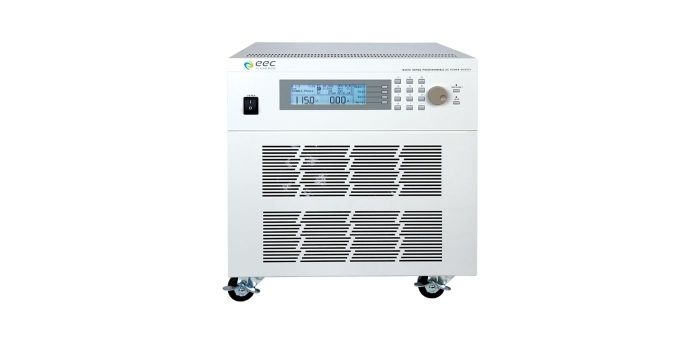

430XAC

3KVA, output voltage up to 600 VAC or 300 VAC per Phase, output frequency up to 1000Hz, CE listed

The 430XAC provides 3Ø AC power and comes with unique features at a competitive price. Our exclusive SmartCONFIG^® feature allows you to switch from 1Ø to 3Ø or DC output with the push of a button - maximizing your investment while giving you the power that your application needs. The 430XAC is a 3 kVA AC power source.

Safety Features: Safety Interlock
Warranty: 5 Year Warranty
Dimensions (W x H x D): 16.93" x 15.77" x 19.69" (430 x 400.5 x 500mm)
Weight: 105.8 lbs (48 KG)

$10,999.00

Options

Calibration Type

- +

$10,999.00

Request a Quote

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Save time and change voltage and frequency on the fly via a convenient front panel encoder.

SmartCONFIG feature allows for push button switching of 1Ø, 3Ø, or DC output.

3Ø power in a single box. Voltages up to 520 VAC and frequencies up to 1,000 Hz.

Quickly store and recall test parameters; with 50 built-in memory locations and 9 test steps each.

Models	430XAC	460XAC
Power Output	3 kVA	6 kVA
Voltage Output	Up to 600 VAC or 300 VAC per Phase	Up to 600 VAC or 300 VAC per Phase
Max Current	9.2 A/4.6 A	18.4 A/9.2 A
Frequency	Up to 1000 Hz	Up to 1000 Hz
Phase	1Ø and 3Ø	1Ø and 3Ø
PC Interface	Yes	Yes

Interlock Disable Key (1505) - X1

Screw 4*12 mm / Flat head cap screw X4

Rack Mount (9U) - X2

Handle for rack (3U) - X2

Short Bar for Terminal Assembly

USB Cable - X1
