6kVA, output voltage up to 600 VAC or 300 VAC per Phase, output frequency up to 1000Hz, CE listed

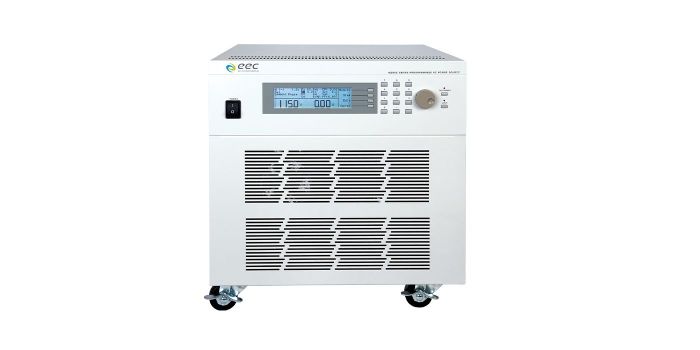

The 460XAC provides 3Ø AC power and comes with unique features at a competitive price. Our exclusive SmartCONFIG® feature allows you to switch from 1Ø to 3Ø or DC output with the push of a button - maximizing your investment while giving you the power that your application needs. The 460XAC is a 6 kVA AC power source.

Safety Features: Safety Interlock, PLC Remote
Warranty: 5 Year Warranty
Dimensions (W x H x D): 16.93" x 15.77" x 19.69" (430 x 400.5 x 500mm)
Weight: 125.6 lbs (57 KG)


Save time and change voltage and frequency on the fly via a convenient front panel encoder.

SmartCONFIG feature allows for push button switching of 1Ø, 3Ø, or DC output.

3Ø power in a single box. Voltages up to 520 VAC and frequencies up to 1,000 Hz.

Quickly store and recall test parameters; with 50 built-in memory locations and 9 test steps each.

Models 430XAC 460XAC
Power Output 3 kVA 6 kVA
Voltage Output Up to 600 VAC or 300 VAC per Phase Up to 600 VAC or 300 VAC per Phase
Max Current 9.2 A/4.6 A 18.4 A/9.2 A
Frequency Up to 1000 Hz Up to 1000 Hz
Phase 1Ø and 3Ø 1Ø and 3Ø
PC Interface Yes Yes

Interlock Disable Key

USB Cable

Shorting bar

Input/output Terminal Protection Box

Rack Mount (2U) x 2

Handle for Rack (2U) x 2
